Overview

Description#

The 2x QSFP28 FMC is an add-on expansion board (FPGA Mezzanine Card) for FPGA and SoC-based development boards. It has two QSFP28 module slots, allowing the connection of up to two QSFP28, QSFP+ or QSFP modules to the carrier development board. Each QSFP28 port provides four lanes of up to 25 Gbps each, for an aggregate bandwidth of up to 100 Gbps per port. The mezzanine card features a jitter-attenuating clock multiplier, supporting Synchronous Ethernet applications, and uses level translators to support a wide range of FPGA I/O voltages from 1.2VDC to 3.3VDC.

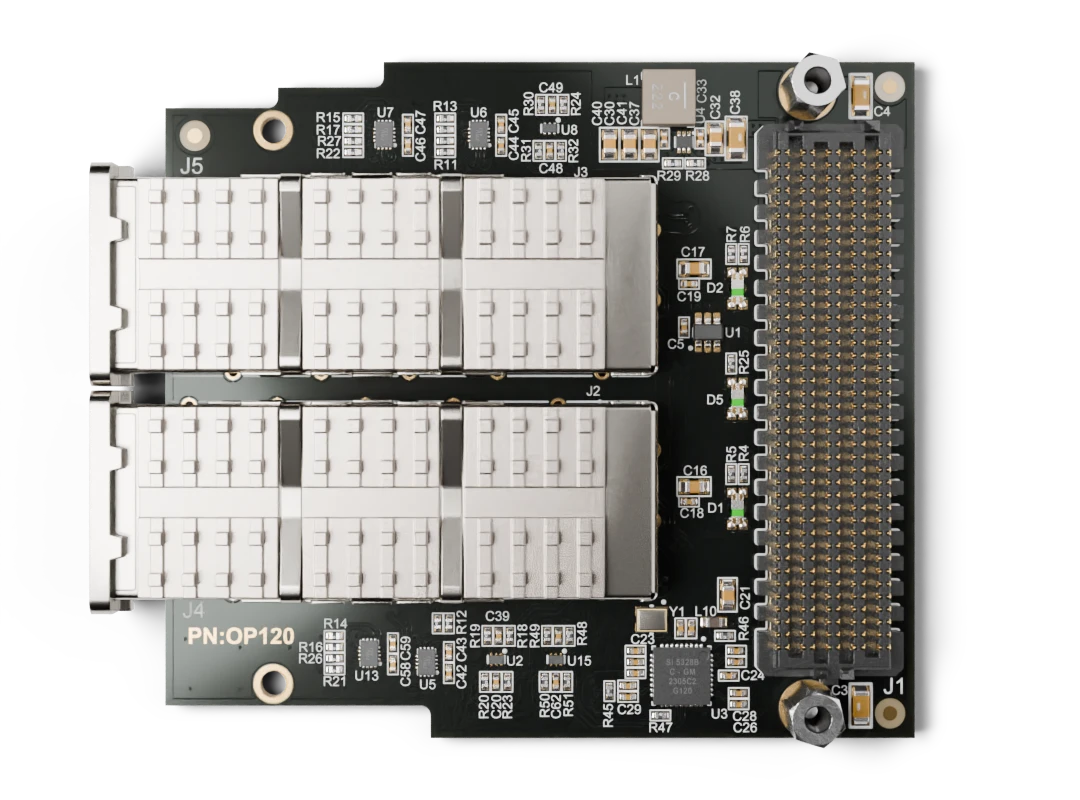

Top view#

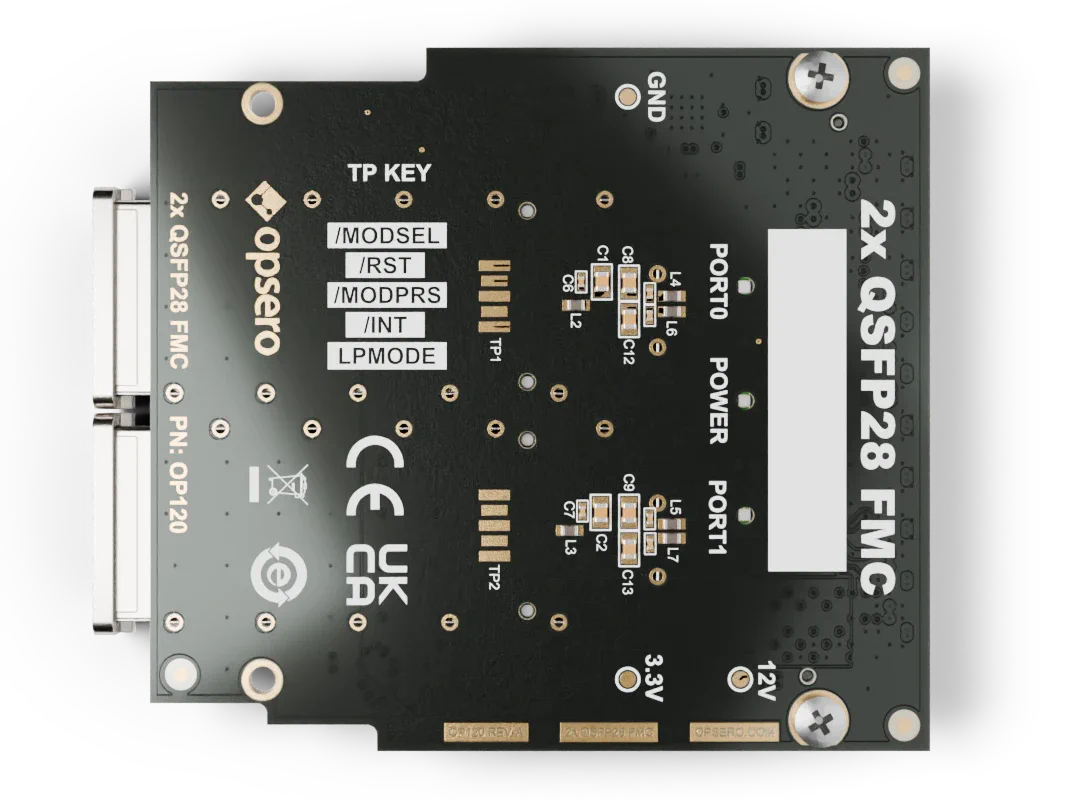

Bottom view#

Application Example#

Features#

• 2x QSFP28 slots compatible with QSFP, QSFP+ and QSFP28 modules
• Each port provides 4x lanes of up to 25 Gbps (100 Gbps aggregate per port)
• Jitter-attenuating clock multiplier with support for recovered clock and SyncE applications
• Supports a wide range of I/O voltages (VADJ): 1.2V-3.3V
• High pin count FMC connector
• FMC pinout conforms to VITA 57.1 FMC Standard
• Testpoints to aid debugging
• Example designs with sources for several development boards
• Standalone and PetaLinux example designs

Ordering#

The 2x QSFP28 FMC can be ordered from the vendors listed below. The links under the part number column will take you to the corresponding order page.

Included with the 2x QSFP28 FMC are 2x machine screws for fixing the mezzanine card to the carrier board.
